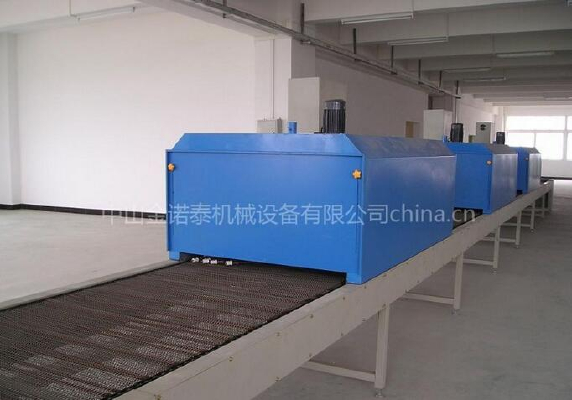

Drying line is suitable for all kinds of objects soaked through hot air drying operation. The line body is made of stainless steel mesh belt or PVC band operation, which is a straight line up and down cycle. Electric heating temperature control hot air circulation, function in the object of the drying operation.

The drying line is widely used in metal, electroplating, chemical industry, packaging, electronics, leather, painting, silk screen, plastic, food and other industries.

Characteristics of the drying tunnel line: drying line of products is heating up fast, uniform heating, drying tunnel line with production line workshop continuous dried product, drying line can also adjust the baking temperature, conveying speed and time according to production needs, can greatly improve the production efficiency, the use of simple and convenient.

Delivery of the drying tunnel line: network chain, mesh belt, string rod, Teflon type, belt type. Heating method: electric heating pipe air, quartz tube heating, diesel burner heating, far infrared radiation heating.

Product category:

According to the heating way to distinguish, there are the following types:

1, the whole hot air continuous drying

2, far infrared heating continuous drying

3, hot air infrared combination type continuous constant temperature drying

According to the transmission way to distinguish, and the following types:

1, continuous stainless steel mesh belt type

2, continuous stainless steel chain clamp type

3, program control step drive type

Product parameters:

(1) size: 20 meters long, 0.8 meters wide outside, within 0.65 meters wide, 1.3 meters high, the feeding part is 5 meters long, 12 meters long drying part, discharging part 3 meters long; 40 x 80 mm square frame through welded line beam using 2 mm thick cold plate making, spray (non ordinary injection) corrosion resistant, easy to clean.

(2) a total of 6 parts: the drying tank furnace chamber, furnace drying area 0.28 meters in height, length of 12 meters, the liner using 1.2mm galvanized plate, 60 mm high temperature insulation layer to prevent rust and oxidation; the bottom is equipped with thermal insulation layer.

(3) electrical parts: power 380V, 30A, three-phase five wire, power 40KW, 2P by Taiwan IVORY inverter VVVF 1.5KW, transmission speed 0.5-8 M / min adjustable; using Japanese RKC intelligent temperature controller, temperature at room temperature to 250 DEG C adjustable function PID self-tuning, automatic temperature control, over temperature shutdown, temperature setting, double temperature control, leakage protection function, the internal temperature of - 3 degree; the other control circuit devices are MITSUBISHI electrical control; each section of the furnace cavity with the fan motor 2, a total of 12 units, with a ten inch fan wind wheel, each with 9 stainless steel the heating tube, each 500KW evenly distributed in the furnace cavity, each section of the furnace temperature can be controlled separately, convenient settings for each segment of different temperature;

The transmission part (4): imported chain type stainless steel mesh belt, head and tail with active passive regulating roller is arranged between the bearing type unpowered drag roller, prevent the belt running.
