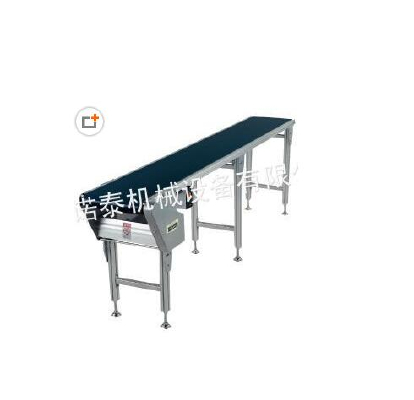

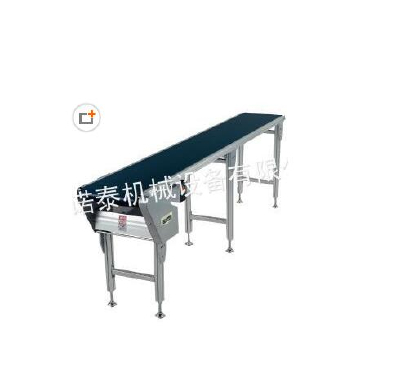

Product Name: Chongqing line of product features: reasonable structure, convenient maintenance, beautiful appearance, is widely used in various industries, stable operation, fully improve high yield, and reduce the labor intensity of staff. The belt type: the Holland port belt line, motor adopts imported motor line body spray. The product specification: the main transport forms: straight line, turning, climbing, lifting, telescopic conveyor form. The driving form: motor driven conveyorform. The belt width: 50-2000mm, can also be customized according to customer requirements. The length of the belt: overview of customer demand. Conveyor belt material: rubber belt, PVC belt, PE belt, Teflon belt, canvas belt, food etc.. The conveyor belt form: with bezel conveyor belt, with panels and flat belt (need to see the product) line bracket stainless steel, aluminum, carbon steel. The transmission speed: 1 30M/min; also according to user need for speed or speed. 9 Application: widely used in conveying production of wine and beverage, fast food and other food. The customer service service: equipment for one year free warranty.

Assembly force of Chongqing assembly line

In the assembly line work, it is necessary to estimate the force exerted on the assembly head to ensure the proper connection of the assembly.

The assembly line with the influence factors are: the gap with the fitting relative position precision, assembly fitting surface chamfer edge, surface roughness, assembly process system stiffness, joint surface clearance and friction coefficient between mating parts etc.. Calculation according to the specific system link.

When fitting the axis parallel, assembly line assembling force in fitting start stage, contact in chamfering, the main factors influencing the assembly line with the assembly line: quality parts, friction factor, the assembly is respectively connected with the work head and match the chamfering angle value and assembly system in the direction perpendicular to the axis of the compliance etc.. It can ignore the compliance of the assembly line, and calculate the clamping force and axial force of the working head to the assembly method in general.

When the mating part is inclined to the axis, the driving force of the axial assembly will be eccentric. At the beginning stage, the mating parts are in contact with the other parts, and with the assembly parts in depth, the two contact points will occur. One point and two-point contact stress were calculated with assembly line when necessary, whichever is greater value.

Two, Chongqing assembly line anti error function

Recognition refers to the assembly line of more than two kinds of products, identification of models of products into the assembly line, and to the assembly line with intelligent function rack command, automatic switching signal display rack, should take part, also issued a directive on the adjusting equipment. Automatic adjustment of the device, according to the instructions automatically switch to the corresponding parts and procedures; manual adjustment of the site, indicating the operator to adjust; man-machine interface of the workstation, according to the instructions to switch to the corresponding display and signal.

MOBY assembly line is not fit, usually can be used to identify mechanical and electrical, that is, the choice of different models, there are differences in appearance, with mechanical detection, with electrical signals sent to the workstation. Foreign type cannot distinguish, usually in a device tray assembly line with a number of telescopic pin, the replacement product, which set manually retractable pin out, on behalf of a certain type, induction switch assembly line on each workstation can be used to identify the pin head out, so as to determine what kind of models.

Error prevention, mainly to prevent the assembly line into the parts from the material frame to take the wrong, as well as to prevent the assembly from the demolition of parts on the wrong and re load the wrong fashion. There are many kinds of error proofing methods of the intelligent material carrier with error proofing function, and the difference is very big. According to the indicator identification device command display parts and numbers should be taken to prevent louqu, photoelectric switch.

Remove reload parts are one-to-one, not wrong, the general assembly line with special manipulator, namely after loosening the bolt together grabbed on the original site, but also can be used together to clamp tiles, a cam shaft and then put back in situ.

Three, Chongqing assembly line flexible function

In order to adapt to the market competition and the effective use of funds, the general users have asked for a assembly line through a variety of product features and new products to adapt to the function, some of the requirements of the assembly line of mixed production. We should pay attention to the concept of multi species mixed flow production and put into the asset, it is to improve the assembly line flexible function.

From the technical point of view adjustment link assembly mixed production basically is automatic, assembly line production basically turns is fast manual adjustment. According to the user requirements design and manufacture of the mixed flow line, the assembly line itself is no problem, but mainly due to the various reasons for the production organization, the user has never actually used the mixed flow assembly. At home and abroad, some manufacturers have introduced the assembly line of mixed mixed flow production, which is also not playing a role.

Need to adjust the change of parameters of assembly line equipment, to change as part of the NC system: such as bolt machine, coating machine, locking plate pressing and all kinds of inspection and so on, in order to adapt to a variety of products, to ensure production rhythm under the condition of part of the assembly line will change, as far as possible the use of CNC system.

Assembly line double working position or multi station working head structure: in order to meet the requirements of a machine tool can be assembled with different products, but can not
